ORION ONE-AR
RECEPTOR GNSS

Cámara de calidad Starlight, Replanteo AR inmersiva

Compra Orion One AR

Home

Productos

ORION ONE-AR
RECEPTOR GNSS

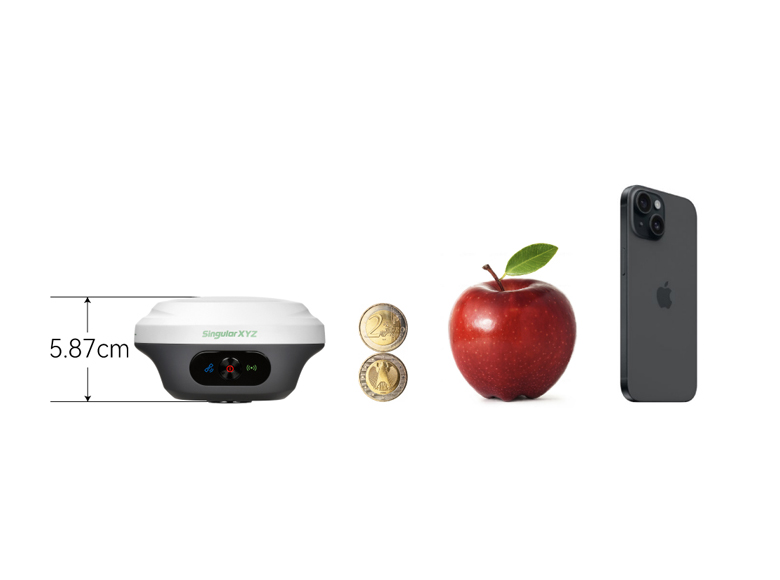

Mini en mano, poderoso para Topografía

Orion ONE-AR está diseñado con un diseño compacto de Φ107 mm × 58,7 mm del tamaño de la palma de la mano, lo que reduce la carga de los topógrafos al tiempo que ofrece un rendimiento potente y una funcionalidad versátil.

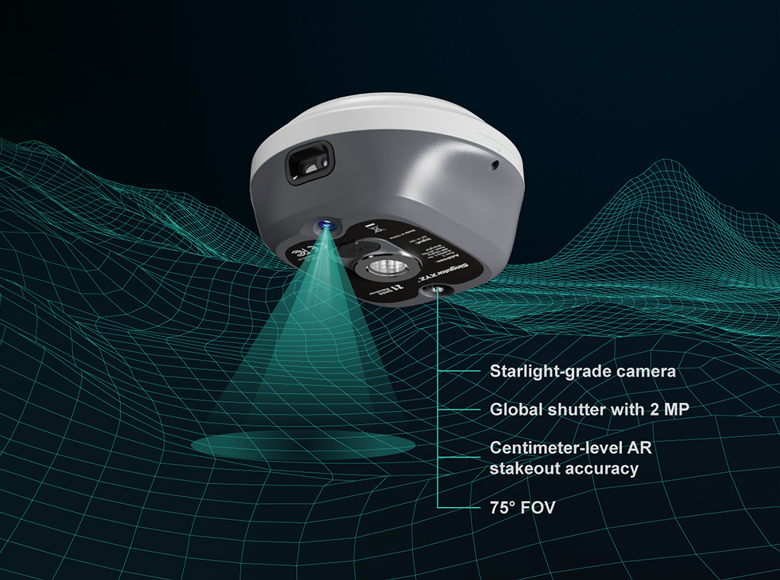

Visual Stakeout with Camera

Orion ONE-AR's 2MP starlight-grade camera offers intuitive visual stakeout, supporting centimeter-level AR guidance with a 75° field of view for accurate results, even in low-light conditions.

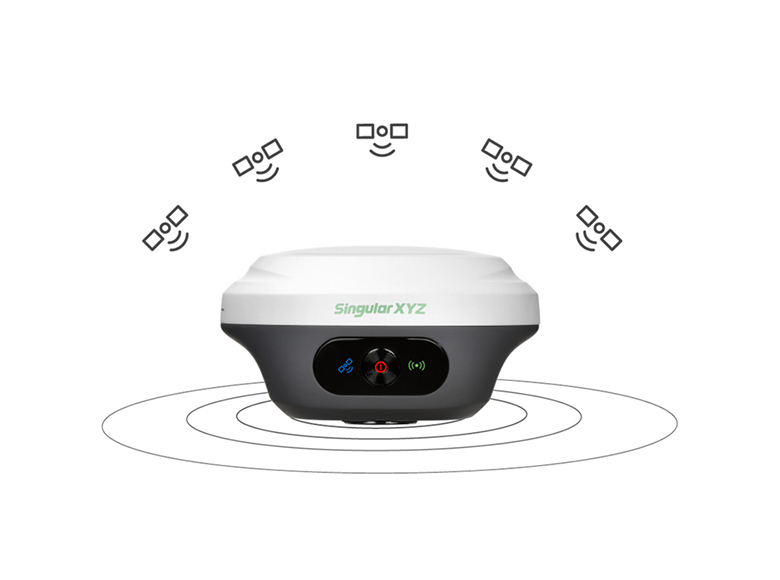

Full-Constellation Tracking

Orion ONE-AR supports full-constellation signal tracking with advanced anti-interference algorithms, ensuring fast and reliable FIX even in complex environments such as city canyons or dense forests.

Mini in Hand

Camera AR Stakeout

Full-Constellation

Mini en mano, poderoso para Topografía

Visual Stakeout with Camera

Orion ONE-AR's 2MP starlight-grade camera offers intuitive visual stakeout, supporting centimeter-level AR guidance with a 75° field of view for accurate results, even in low-light conditions.

Full-Constellation Tracking

Orion ONE-AR supports full-constellation signal tracking with advanced anti-interference algorithms, ensuring fast and reliable FIX even in complex environments such as city canyons or dense forests.

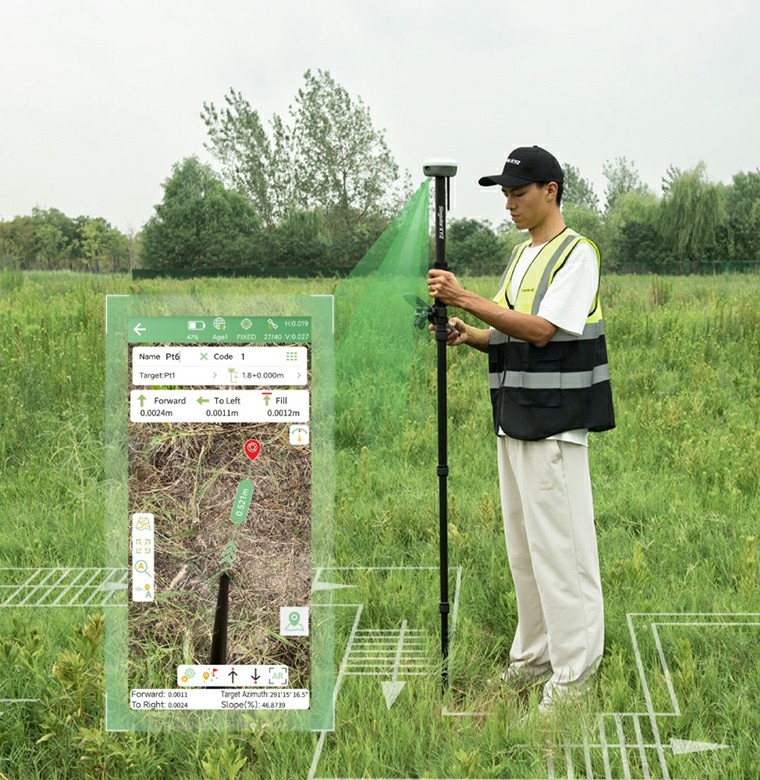

Experiencia de RA inmersiva con un 50 % más de eficiencia

El replanteo visual AR de Orion ONE-AR permite a los topógrafos localizar puntos de replanteo directamente en el mundo real, mejorando la precisión en más del 50 % en comparación con los métodos tradicionales, sin necesidad de experiencia previa.

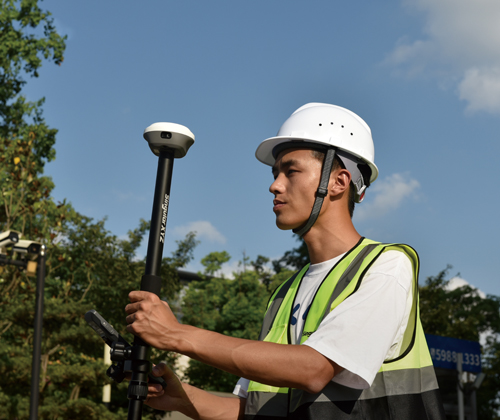

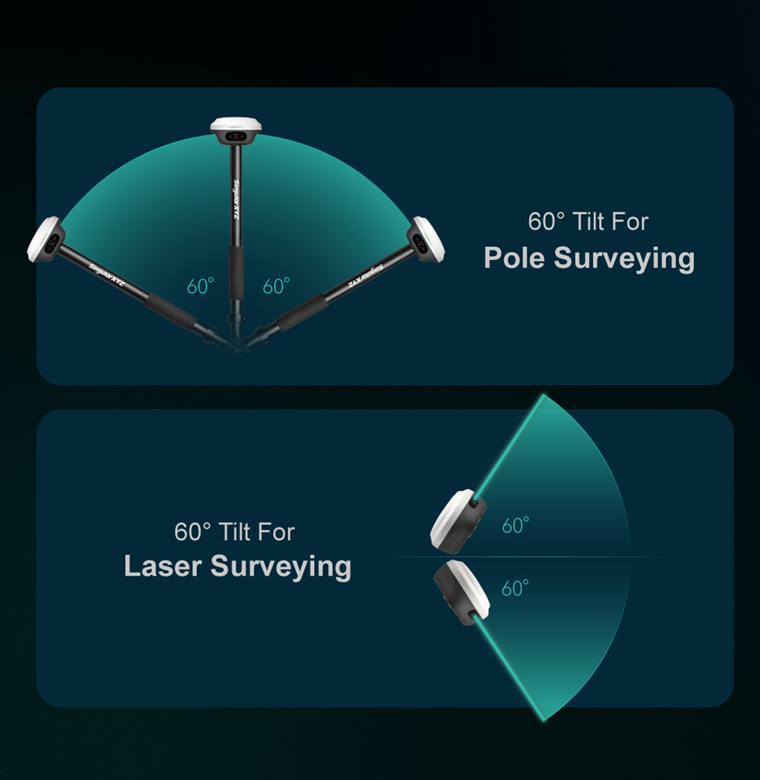

60° Sensor Inclinación

With a high-performance IMU, Orion ONE-AR supports up to 60° tilt range for both pole surveying and AR visual stakeout, greatly increasing working efficiency and possibility.

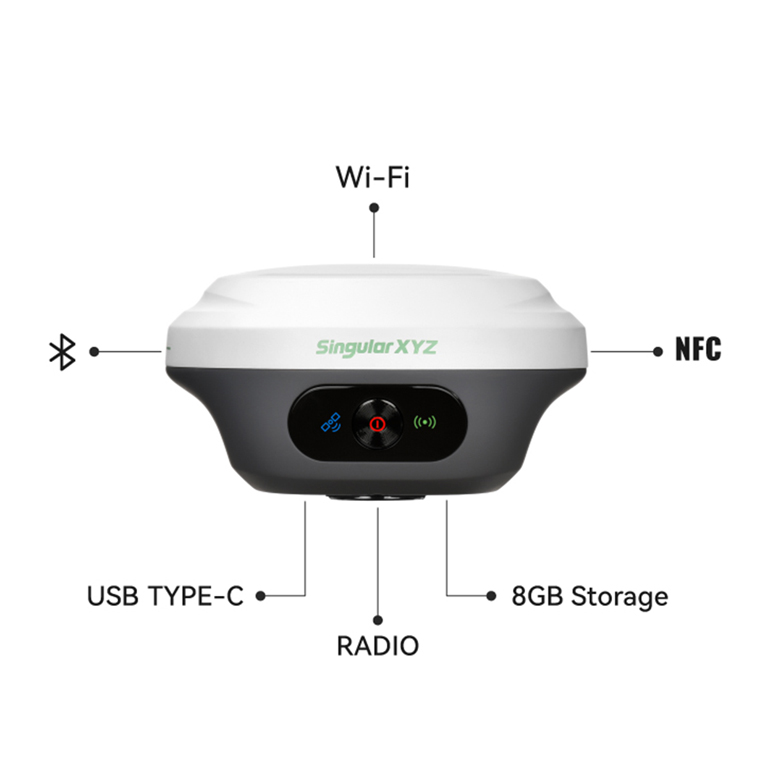

Transmision Versatil

With integrated NFC, Bluetooth, WiFi, USB Type-C and 8GB onboard storage, Orion ONE-AR offers versatile connectivity options, making data transfer and device management effortless.

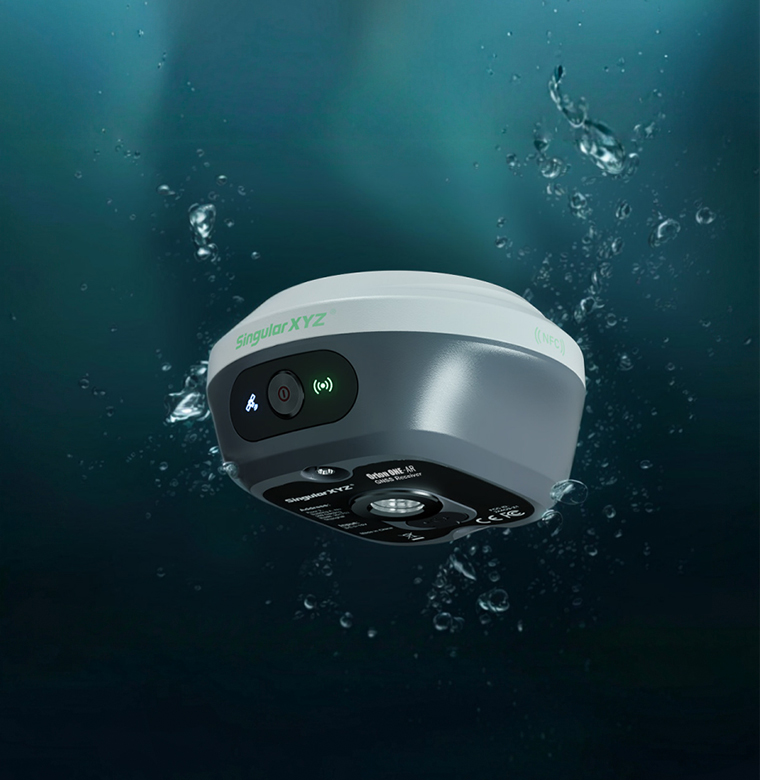

Protección IP67 Robusto

Built to withstand harsh environments, the IP67-rated casing of Orion ONE-AR provides protection against water, dust, and accidental drops, ensuring uninterrupted performance in the field.

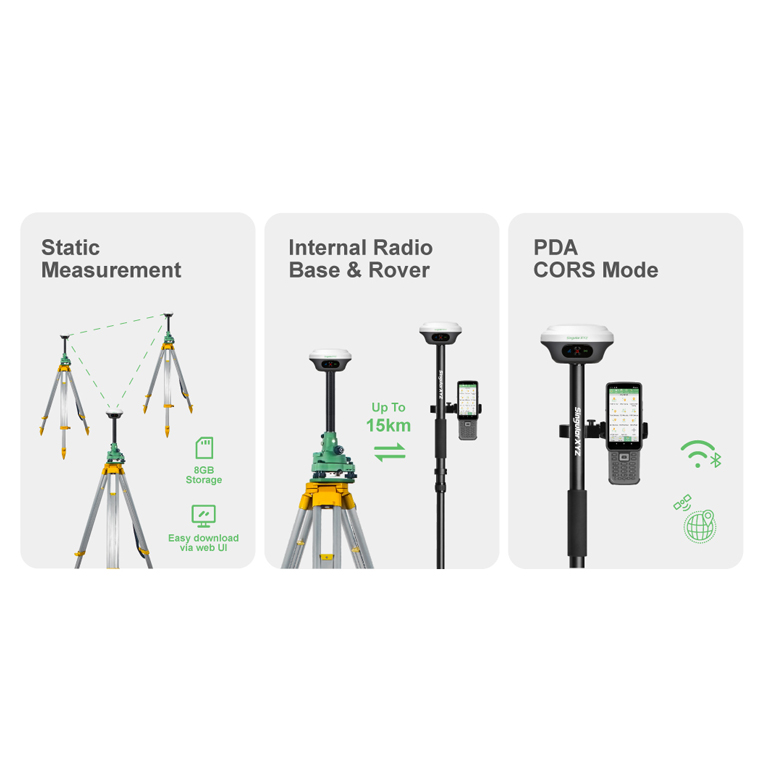

Flexible Work Modes

- Static Measurement: Record static with 8GB storage, downloadable via web UI.

- Internal Radio Mode: Achieve up to 15km range with the built-in UHF radio.

- PDA CORS Mode: Connect through Bluetooth, easily access to local CORS via PDAs.

Software & Plataforma

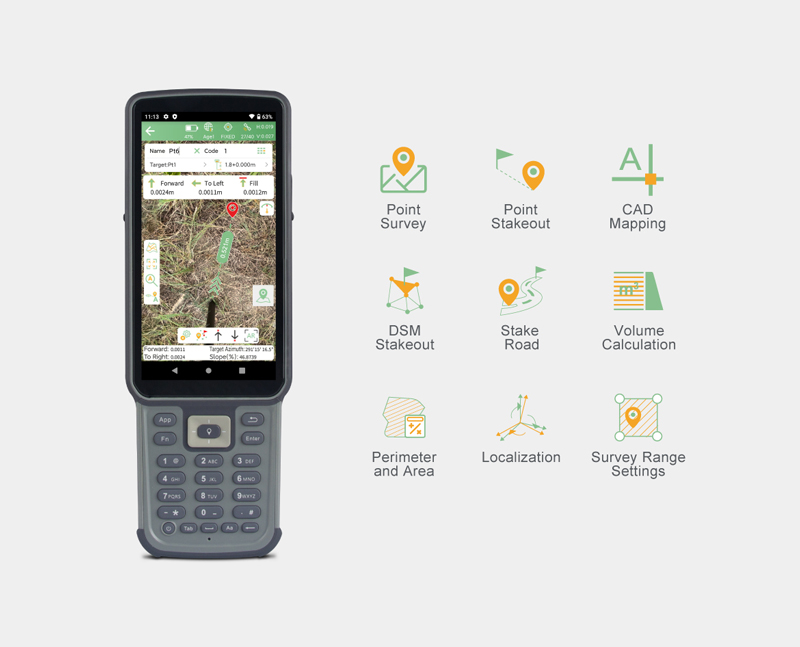

SingularPad Field Surveying Software

SingularPad, un software de campo profesional basado en Android, está diseñado para satisfacer diversas necesidades topográficas. En combinación con la innovadora serie Orion ONE, incorpora interacción de datos por Wi-Fi, replanteo visual y capacidades de

Industrias & Aplicaciones

Land Surveying

Especificaciones

Recursos

SATELLITES TRACKING

Channels

1408

BDS

B1I, B2I, B3I, B1C, B2a, B2b

GPS

L1C/A, L1C, L2C, L2P(Y), L5

GLONASS

G1, G2, G3

Galileo

E1, E5a, E5b, E6

QZSS

L1C/A, L1C, L2C, L5

RTK Accuracy

8mm+1ppm Horizontally
15mm+1ppm Vertically

GENERAL

WebUI

Accessible via Wi-Fi

Battery

- 4200 mAh, up to 12 Hours Working Time
- Fast Charge of 3 Hours Charging Time

Size

Φ107 mm × 58.7 mm

Weight

547 g

Waterproof & Dustproof

IP67

VISUAL SENSOR

Sensor Type

Camera

Pixel

Global Shutter with 2 MP

Feature

Starlight-grade Camera, HD Capture in Weak Light Environment

AR Stakeout

8mm+1ppm Horizontally
15mm+1ppm Vertically

COMUNICACIÓN

UHF Modem

Up to 15km with optimal conditions

Bluetooth

BT4.0 Dual Mode

WiFi

802.11 a/b/g/n/ac

Interface

Type-C Interface for Data Transmission and Charging
